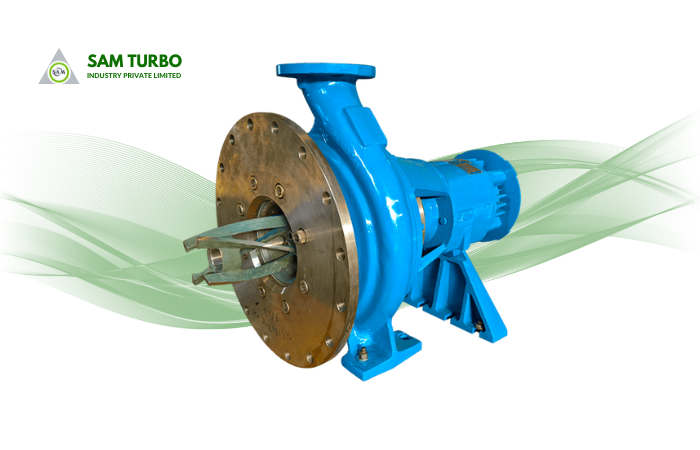

Medium Consistency Pumps (TPS+H)

Home  |  Medium Consistency Pumps (TPS+H)

Description

The medium consistency pumps are designed for reliable pumping of stock from 8% to 18% consistency. It is recognised for its reliable direct drive and easy maintenance. It is suitable for turbid and slightly contaminated liquids.

Operating Range

  • Delivery Size : DN 80 to 200 mm
  • Capacity : Up to 500m³/hr
  • Head: Up to 140 m
  • Temperature: Up to 150° C
  • Pressure: Up to 22 bar

Applications

  • Reliable pumping of pulp stock from 8% to 12% consistency
  • Supplied along with vacuum pump – in-built / external mounted

Design Features

  • Centrifugal & Single stage
  • Open impeller with fluidizer
  • End suction & Top discharge
  • Sturdy & vibration free casing mounting to the base
